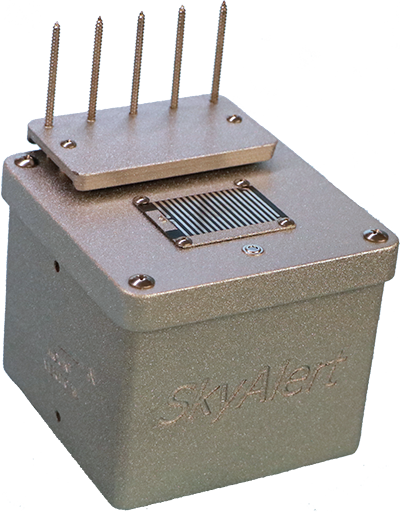

The Sensors Module

SkyAlert

Cloud Sensor from Interactive Astronomy



Calibrate Sensors

Allows sensor adjustments to match other weather units.



The Main Software Interface

A small compact display for quick overview of the data

MOUNTING



The Settings

Straightforward adjustments, settings and unsafe alert threasholds

Cloud Detector

Specifications

Generates a "Boltwood II Text File" to provide the weather data to most remote roof controllers, such as- SkyRoof

Also compatible with these imaging apps.- Voyager. NINA. CCDAP. ACP. SGP. CCD Commander. MaxPilote. PRiSM

Weather text data may shutdown your observatory for clouds, rain, high wind, high humidity or low temps.

Creates & saves .jpg or .png files for the internal ftp uploader, to provide website viewing of graph.

Has an intergrated heater for dew removal on Rain and IR sensor. (Includes a 9 vdc power supply)

Monitor Resolution Required for graph display (Min Height of 800 pixels)

Required Operating Systems (Windows....XP, 7, 8 , 10)





Pricing and what's included:

$749.00 USB Unit............................$849.00 Ethernet Unit

SkyAlert Sensors Module Unit...........................................SkyAlert Sensors Module Unit

Software Package with Graph............................................Software Package with Graph

Wind Speed Sensor included..............................................Wind Speed Sensor included

SkyAlert USB connectivity..............................,..................SkyAlert Ethernet connectivity

FTP uploader for web display............................................FTP uploader for web display

25 ft USB Active Cable............................................................35 ft Ethernet cable w-PoE

9 VDC Power Supply w/Cable..........................................................9 VDC Power Supply

Rain & IR Sensor dew heater...............................................Rain & IR Sensor dew heater

Mounting bracket....................................................................................Mounting bracket

(Free shipping in the continental U.S..........No overseas sales accepted)



Order Link Here:











See who is using the SkyAlert Cloud Sensor :

Link To Live Graphs

















All weather unit sensors are replaceable.

All components and sensors have a full one year warranty.

* 1 > Wind Speed- Sensor

2 > Tem,Humidity,inHg Sensor

3 > Photocell...Brightness- Sensor

* 4 > Rain................... Dampness- Sensor

* 5 > INFARED......... Sky Temperature- Sensor

Components marked with * indicate SkyAlert module must be returned to the factory for replacement.























Sensor replacement prices after the one year warranty expires-

Rain Sensor- $46.00

Wind Speed Sensor- $54.00

Temp / Humidity / inHg- $50.00

Photo / Brightness Sensor- $32.00

INFARED Sky Temp Sensor: $41.00

LINK TO ORDER SENSORS







For technical issues or other inquires,

contact Jim Collins

Email- jimstar11gps@yahoo.com

Direct Mobile Phone- 510-495-7932

Skype Number- 530-588-7962



Links to other products:









SkyAlert is a compact/ self-contained weather monitoring system designed for automated observatories. Link to dimensions and mounting.

SkyAlert monitors wind, humidity, rain, temperature, daylight, dew point and cloud conditions. It uses the data to create a standard one-line weather data file that can be used by most image automation software packages and observatory roof control systems.

The included software can produce custom real-time weather graphs and generate jpeg or png format snapshot images of the graphs which can be uploaded to the web via the built-in ftp client. SkyAlert is offered with either USB or Ethernet connectivity.



DATA PROVIDED:

Humidity % Level

Wind Speed mph or kph

All Temperatures in.... C or F

Calculated Dew Point Temperature

Precipitation Sensor for- Dry/ Damp/ Rain

Brightness Levels- Daylight/ Dimlight/ Darkness

IR Sky Temperature to deternine Clear or Cloudy Skies

Graph dislplay can plot in either 12 hour time or 24 hour time

Barometric Pressure included with Temperature and Humidity Sensor

NEW ADD-ON FEATURE......Mechanical Wind Anemometer......see this LINK

NEW ADD-ON FEATURE......Monitors 110vac line power...........see this LINK

USERS GUIDE LINK



- SUPPORTED UNSAFE LIMIT ACTIONS -

> Close Roof for Hardware Failure, Data Loss or Power

> Close Roof for High Wind or High Humidity

> Close Roof for Cloudly Skies or Rain

> Close Roof for Low Temperature



Data Monitoring Graph Included !

Live weather data from "Meadow View Observatory", Chico CA USA, updating every 20 seconds.
