Imaging train for new Pyxis 3”



< Back

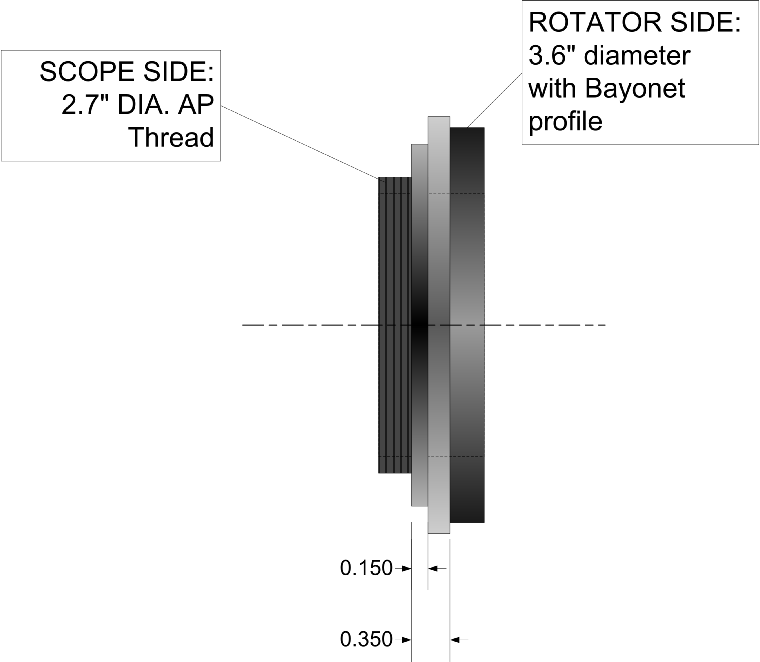

CUSTOM ADAPTER:  scope - rotator



Scope - Rotator  Adapter  was custom made to provide the closest possible fit.



It must allow for cap screw clearances on the scope back plate as well as clearing the fans and RS232 connector.



This arrangement allows access with a hex wrench to the mounting set screws on the rotator.



Link to PYXIS

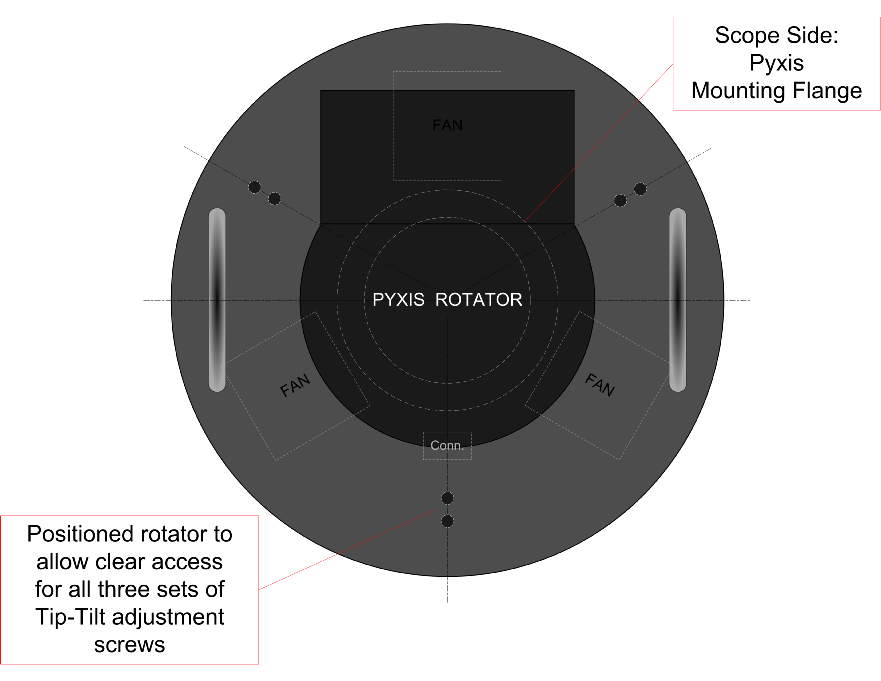

REAR VIEW-: Rotator covers connector

and partially covers all three fans.

Clearance is needed between fans &

connector to reach set screws on

mounting flange.

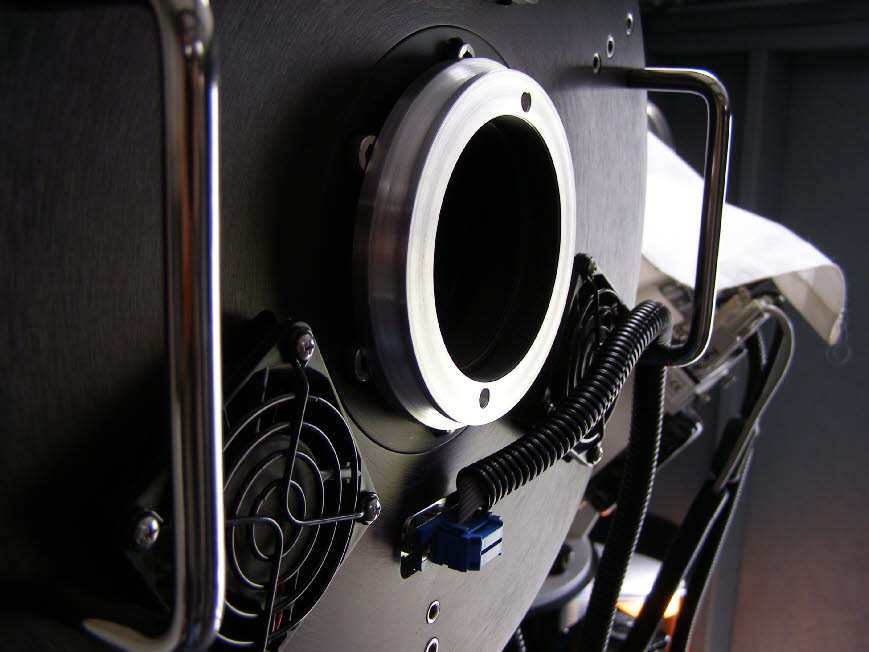

NEW CUSTOM ADAPTER MOUNTED

With holes for spanner wrench

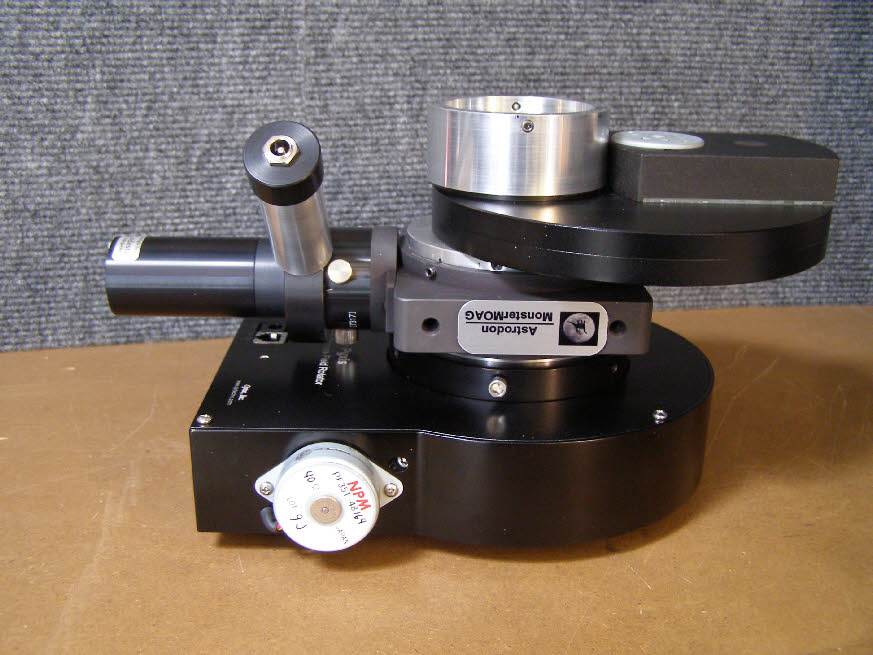

NEW PYXIS 3” ROTATOR

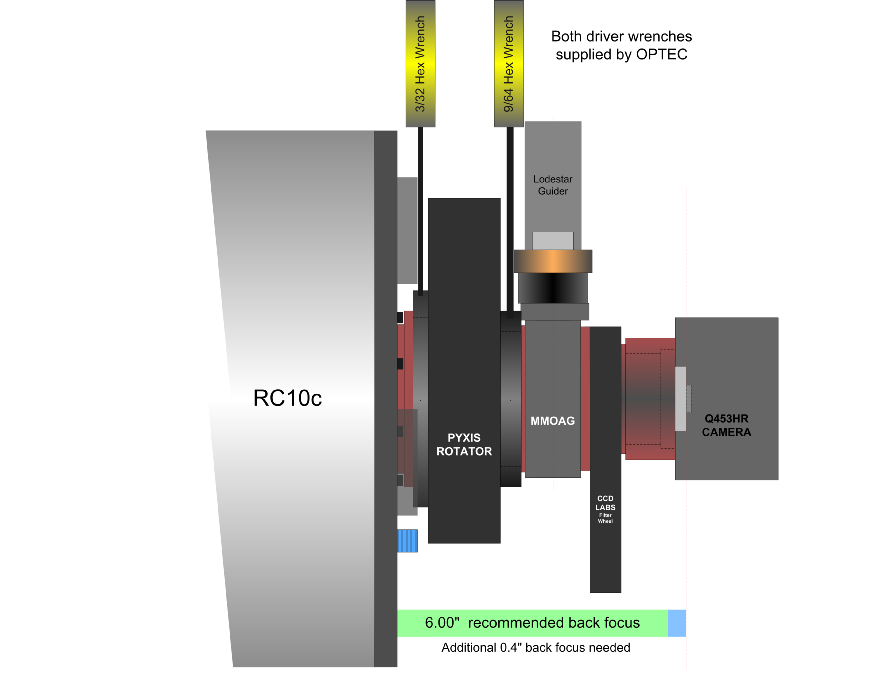

Imaging train ready to go on scope
