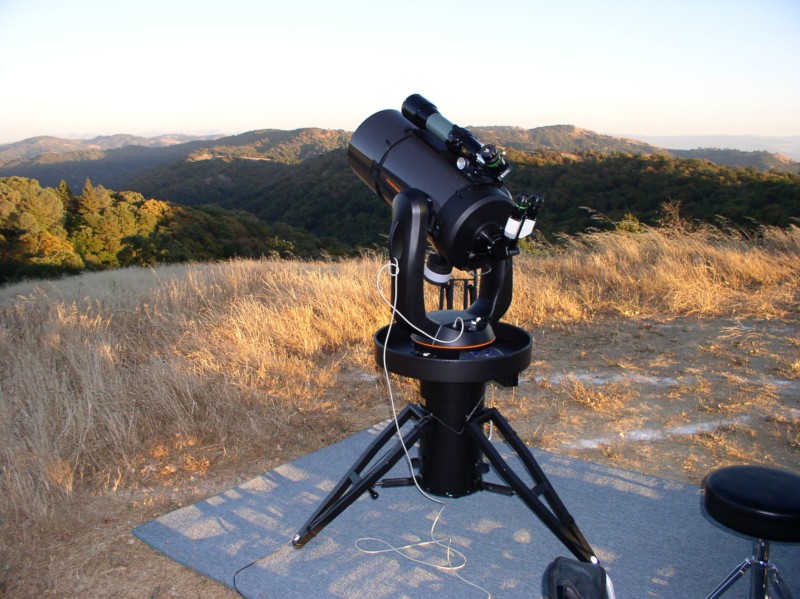

THE PROBLEM- Cable running to computer.........causes cord wrap issues + tripping over in the dark!! |

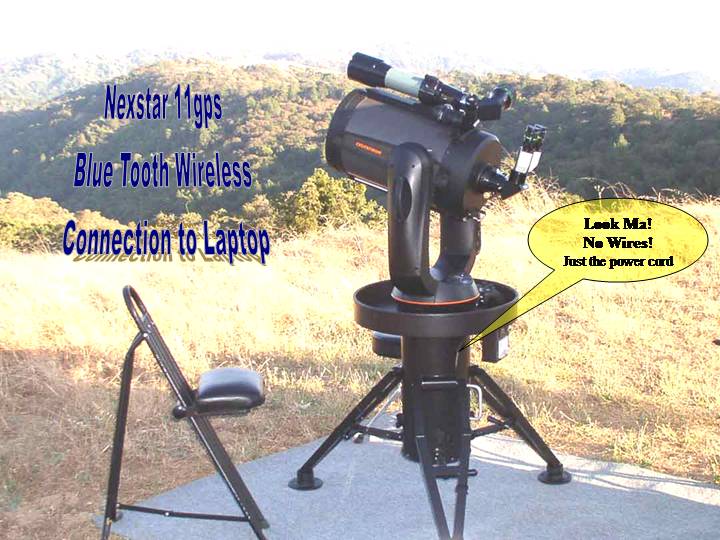

THE SOLUTION- RS232 Blue Tooth Connection Allows Telescope connection to computer w/o an additional wire to cause cord wrap problems. |

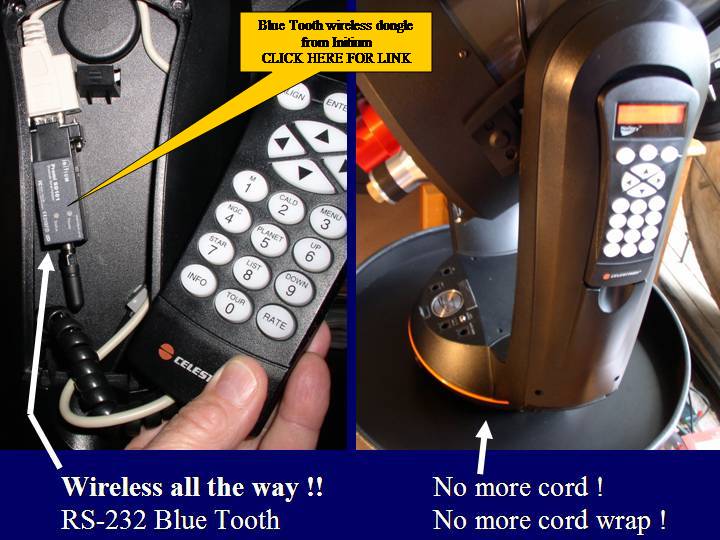

Blue Tooth RS232 dongle required This dongle required 5v dc power.........also, special custom cable RS232 DB9 to 4 pin connector. This modification allows for a very clean setup...........everything is installed neatly behind the hand control. |
Installation Overview Speical wiring for RS232 cable on next slide |

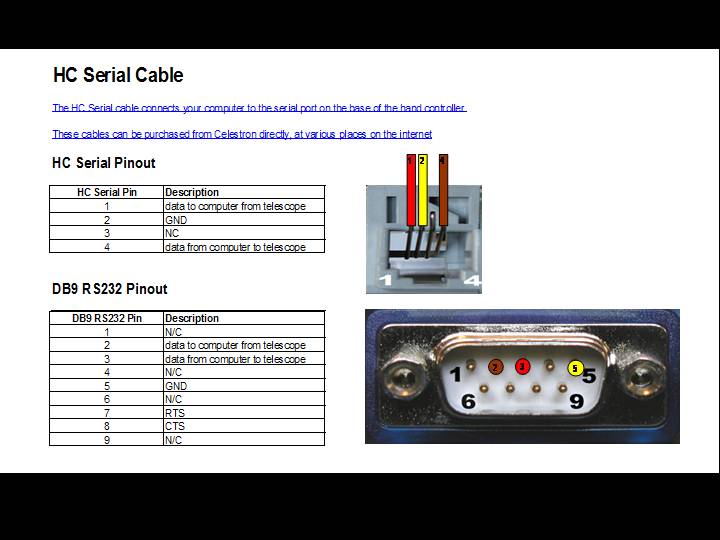

RS232 CABLE WIRING |

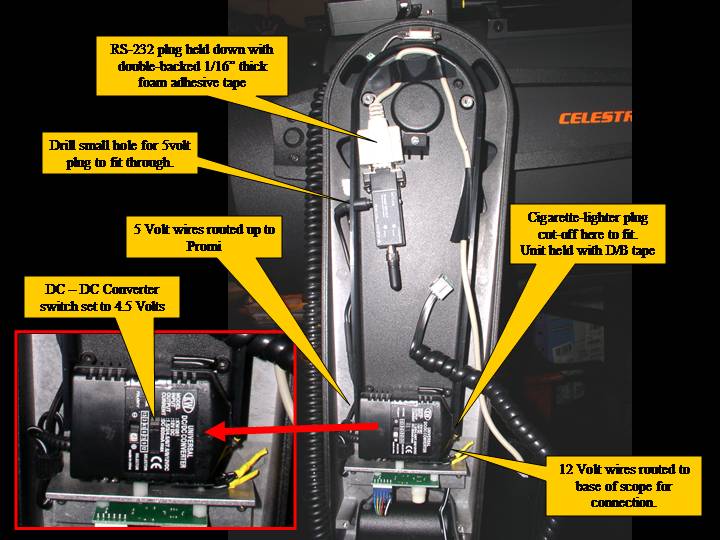

12vdc Connections Access to 12 vdc connector to provide power to the DC-DC converter. |

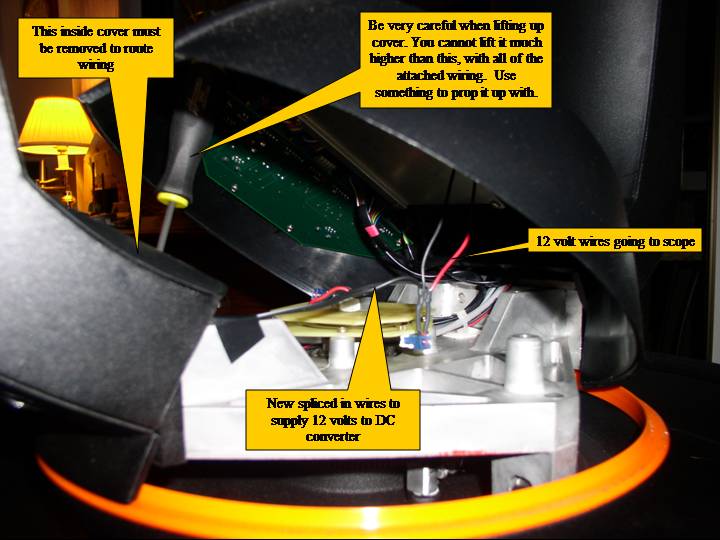

Opening Base Shroud New connections are already shown being routed back to the left arm of the scope housing. |
Parallel Wiring Connection to Plug |

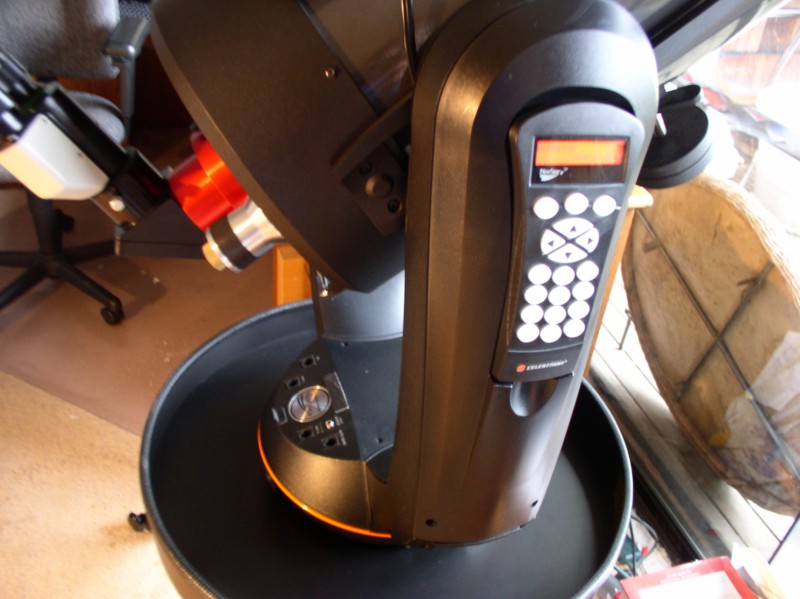

Finished No cables or cords connecting to computer |
